Hello all!

I'm not sure what has compelled my addiction of building these 1940's ARRL radios, but I'm hooked!

This model is the unit that Lindsay had used as a model to fashion his "Impoverished Radio Experimenter" volume that featured a homebrewed superhet receiver, complete with homebrew I.F. transformers.

Well, I had to build the "original" to see what how it handled.

What a totally cool design!  The "sophistication" of this unit brings it even closer to handling like a real store-bought unit.

I had to come up with my own BFO coil.  And, I could not locate the 1600 kHz I.F. permeability tuned transformers, but was lucky enough to find some nice high-quality Millen capacitive-tuned ones.

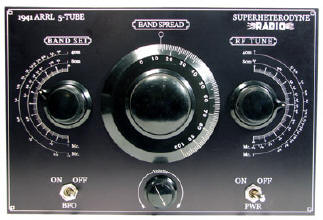

To replicate the original ARRL layout, I blew-up the top-view from the ARRL handbook, and taped it to my chassis to transfer component location.

I do not know why my front panel didn't have the enough "room" for the various band designations.

Their panel was 6" X 10".  I've increased my height to 7" X 10".  The chassis is the same dimension.  Maybe the ARRL original had smaller knobs?

This unit really brings back cherished memories of what electronics first was to me.  Only, this time, I get to understand it, conquer it, and afford it, let alone, build it from scratch!
